NSC System Controller
The Networked System Controller from Linea Research delivers precise, high-quality audio and intuitive system configuration for sound systems. Available in three models, its ASC48-derived architecture ensures dependable operation and consistently superior sound, setting a new standard in performance.
High-Performance NSC System Controllers for Professional Audio
Features
| NSC24 | NSC46 | NSC48 |
|---|---|---|
| Two input channels and four output channels | Four input channels and six output channels | Four input channels and eight output channels |
- 96kHz Digital Signal Processing
- Analogue, AES3 input as standard
- Optional 8×8 Dante I/O connectivity available across all models
- Full front panel user interface offers simple intuitive local operation
- Control and telemetry via ethernet with System Engineer software
- Proprietary VX (Virtual X-Over) limiter
- Flexible module preset recall
- Powerful grouping & multi-layer EQ
- FIR file compatibility 48kHz/96kHz
Description
The advanced 96kHz digital signal processor offers unique and useful features. In-house designed DSP algorithms are exclusive to Linea Research. For example, LIR (Linear Impulse Response) crossover filters are as easy to use as conventional filter shapes. They also provide lower latency than FIR filters. The powerful VX Limiter suite includes Peak and RMS limiting. It also provides multiband limiting for passive 2-way enclosures.
Supporting analogue, AES3, and Dante inputs and featuring analogue and Dante outputs, the NSC series makes it suitable for the most demanding applications, especially when flexibility is paramount.
When used as a loudspeaker management system or a digital crossover, the NSC Series delivers state-of-the-art features and performance. The NSC Series can receive, process, and transmit audio without leaving the digital domain. This makes the NSC Series an ideal audio controller for small, medium, and large systems. It remains effective even when amplifiers with in-built DSP are used.
The Ethernet connection on the NSC enables remote control, while a front panel optimised for challenging environments provides full local control. Control and telemetry via Linea’s intuitive System Engineer software application offers convenient, time-saving features, such as flexible management of presets and Group control.
Downloads
- NSC Brochure and Datasheet
- NSC User Manual
- NSC Firmware
- Compliance Documentation
NSC System Controllers — Advanced Professional Audio Controllers

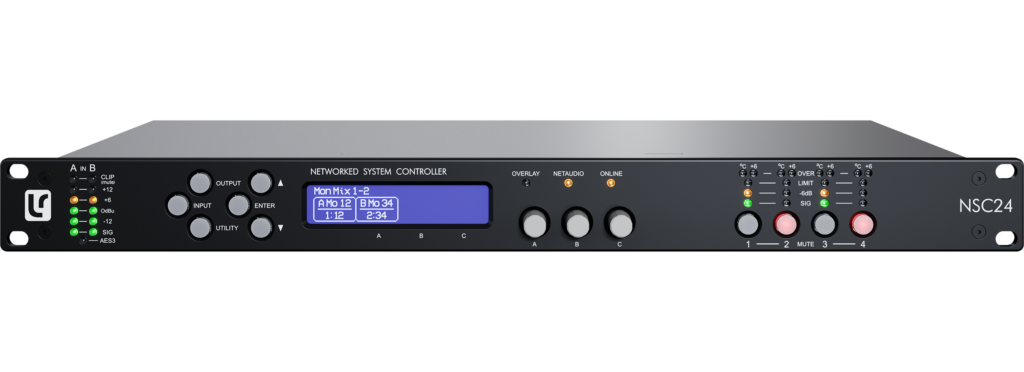

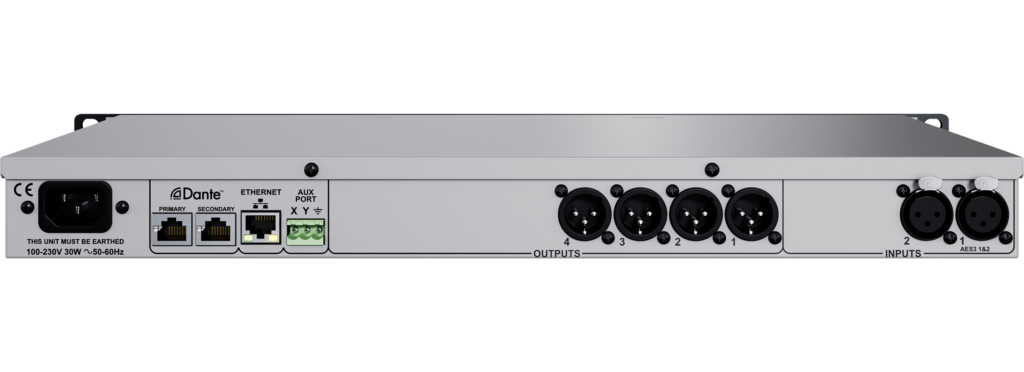

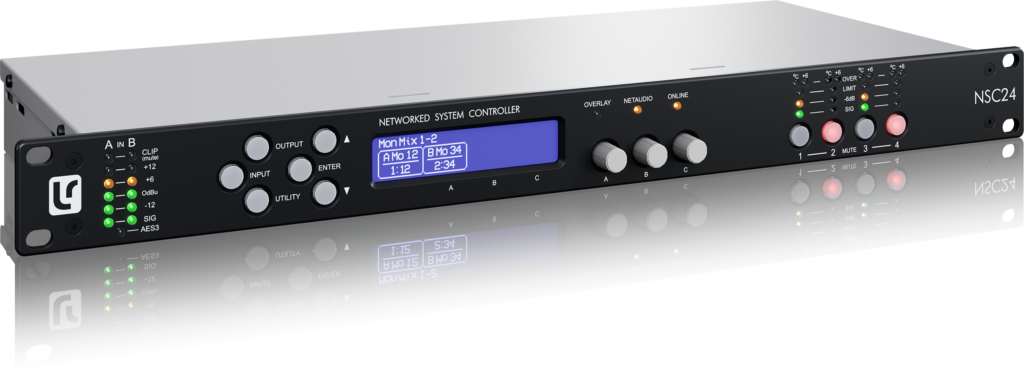

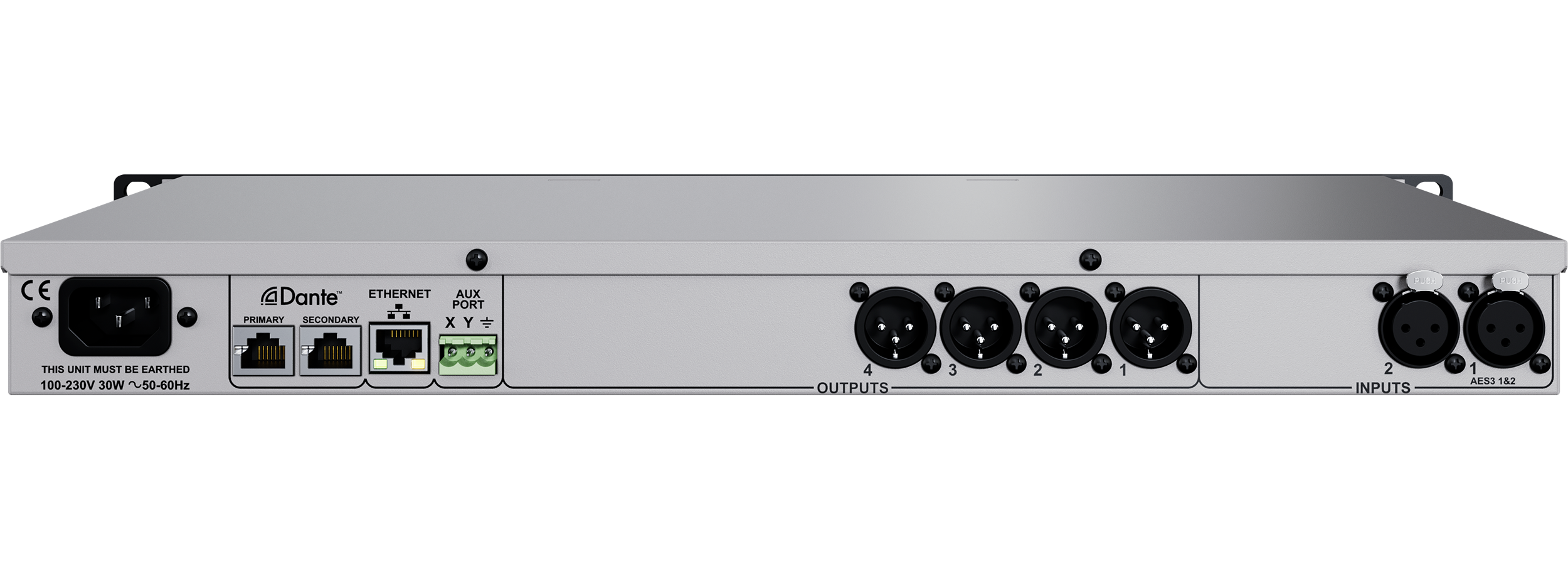

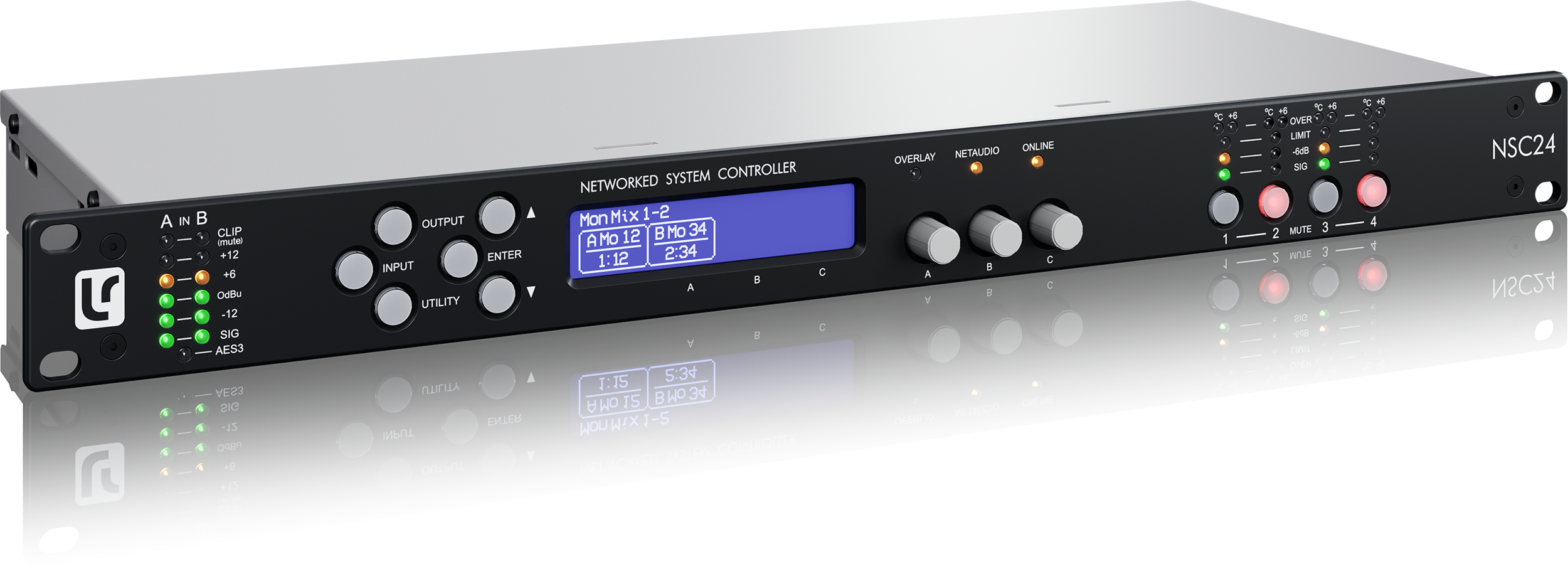

NSC24

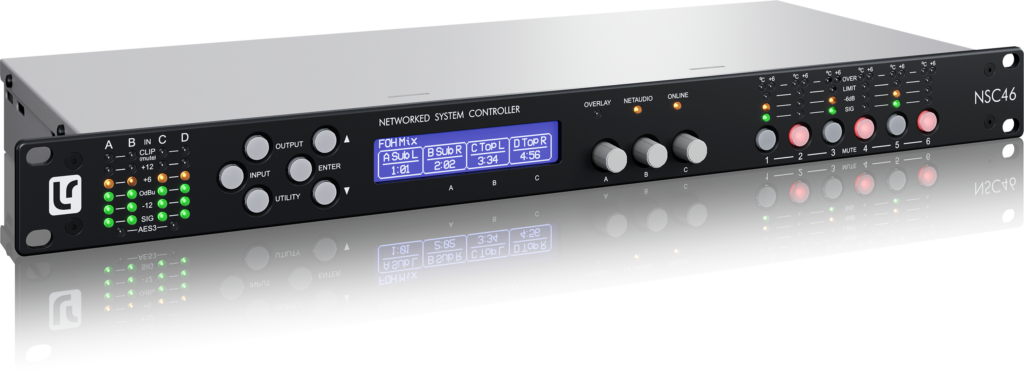

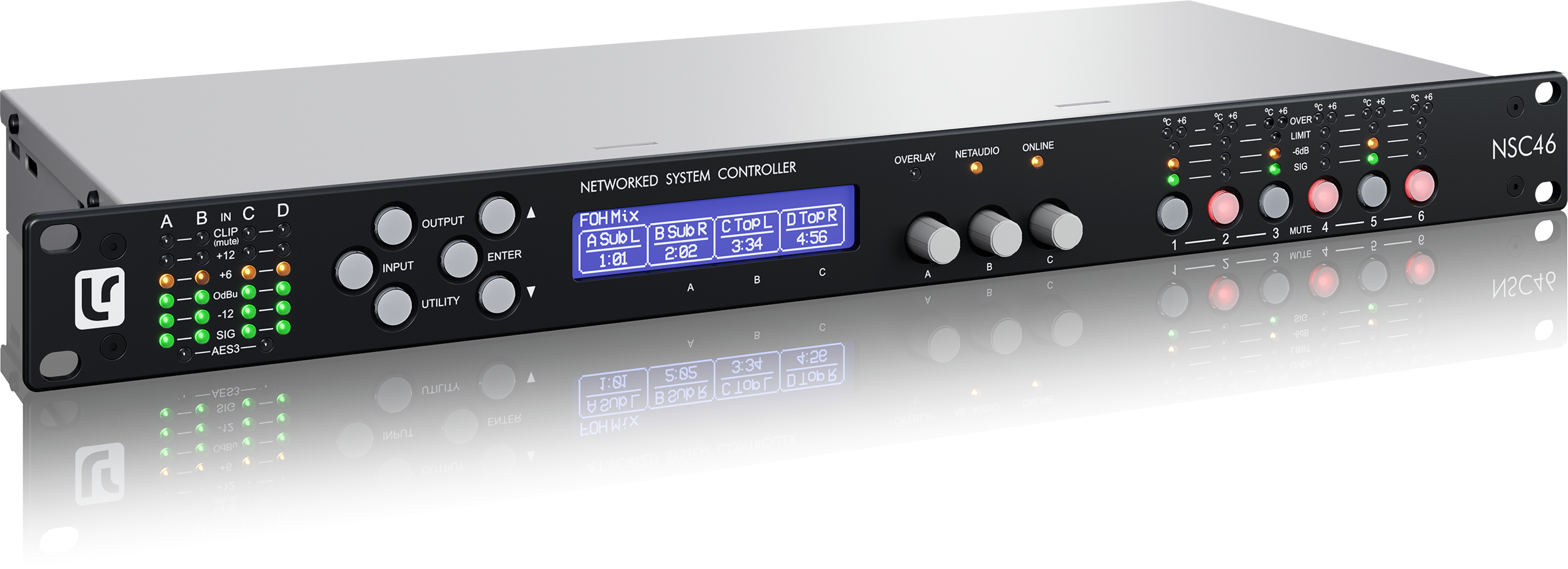

NSC46

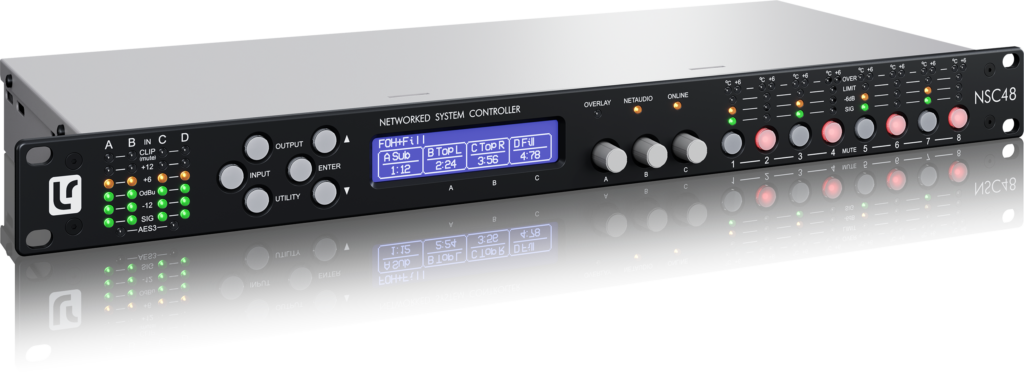

NSC48
FAQs
What are the main differences between the NSC24, NSC46 and NSC48 models?
NSC24 provides 2 inputs and 4 outputs, suited to straightforward systems.
NSC46 includes 4 inputs and 6 outputs, and NSC48 offers 4 inputs and 8 outputs, increasing flexibility for designed applications, including Biamp monitor systems, FOH that cover multiple zones separately.
How does the NSC Series integrate with Dante audio networks?
The NSC Series can integrate with Dante audio networks through an optional Dante interface, allowing audio to be sent and received over standard Ethernet connections. This makes it easy to connect with other Dante-enabled devices, simplifying cabling and system design. Combined with analogue and AES3 input connectivity and analogue output, the NSC Series can be used in both fully networked and traditional audio environments.
What DSP features and limiters are included with the NSC controllers?
The NSC controllers have a comprehensive range of DSP tools for loudspeaker management, including routing, EQ, frequency dividing, limiting and FIR compatibility. The series also features Linea Research’s proprietary technologies, such as LIR (Linear Impulse Response) crossovers for low-latency, phase-accurate performance, along with the VX limiter suite, which provides peak, RMS and multiband limiting to protect loudspeakers while maintaining sound quality.
Can I control and configure the NSC remotely via software?
Yes. The NSC can be controlled and configured remotely using Linea Research’s System Engineer 8 software via an Ethernet network connection. This allows users to manage setup, adjustment and system monitoring from a desktop computer, giving the user a fast and efficient workflow, while local control is also available from the front panel when needed.
What kind of systems and environments are the NSC controllers best suited for?
Professional audio systems that require precise control, reliable loudspeaker protection and flexible routing are ideally suited to the NSC Series. Typical applications include fixed installations, live venues, touring and rental environments, as well as theatres, houses of worship, clubs and hospitality spaces, ranging from smaller systems to more complex multi-zone deployments.
